Introduction:

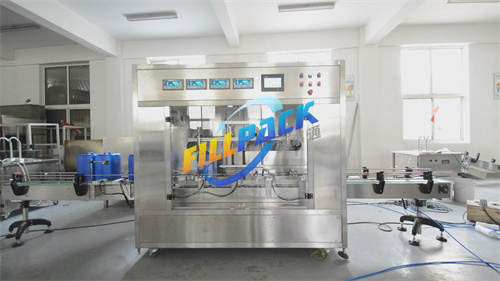

This filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations are complete on the touching screen. It is reliable, stable, and widely used for 5-30L liquid filling into Large containers like Jerry cans, Tin can, Drum, Bucket, Pail, Tub, etc. Applicable products like cooking oil, lubricant, paints, coating, chemical liquid, etc.
Performance advantages
- Control system--- Mitsubishi PLC, random trimming filling measurement.
- Operation interface--- colorful touching screen, visible, easy to operate, weighing results displays on the screen, too.
- Function improvement---the feeding nozzles are equipped with filling blockers to prevent leaking and dropping and can also realize diving filling according to the material properties. (this function is optional)
- Real-time alarm---automatic stopping and alarming when the system appears serious breakdown.
- Electrical elements---adopting internationally famous brands to ensure remarkable quality, stability, and high precision.
- Machine elements---the parts touching the material using the high-quality sus 316 and non-poisonous, anti-corrosive PTEF hose. Others use the sus 304.
- Expansion function----- We can carry out special configurations according to the customers’ requirements. (material airtight, heating and sterilizing, etc.)
- Counting detection---- real-time counting, reflecting the output directly.
- Filling detection----No-bottle no-filling, it will not conduct filling if the bottles are not enough. Filling precision is ± 0.03%, more accurate than the original ± 1%.
- Environmental protection configuration--- equipped with an eco-friendly frame, (this environmental protection configuration can be optional), fully accords with the GMP requirements, easy to disassemble and clean.
- Adaptability--- ideal for 4L-30 large-dose packaging range, one machine can fit for the big range, no need to change parts, just need easy adjustment.
Main technical parameters
1. Filling head: 2,4,6,8 heads
2. Application: all liquid and semi-fluid products
3. Power:380V, 50HZ
4. Bottle size: 5-30L
5. Filling precision: ±0. 1%
6. Filling Speed: 100-1000 pcs/hr.
7. Machine weight: 500 kg
8. Overall Dimension: 2500mm × 1100mm × 1800mm
9. Air source requirements: stable 0.5Mpa-0.7Mpa air
Application

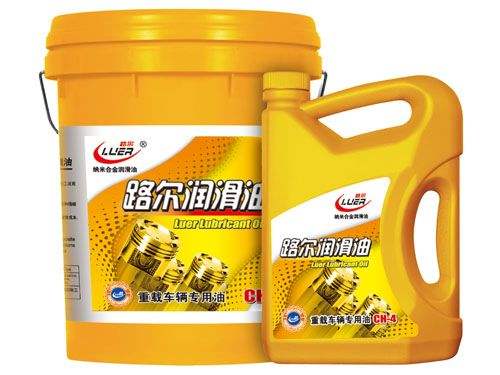

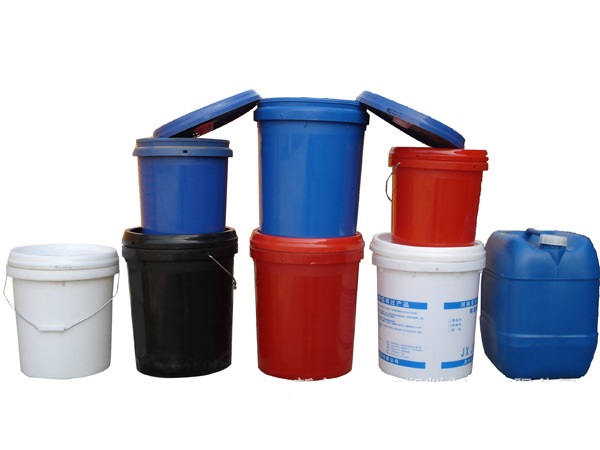

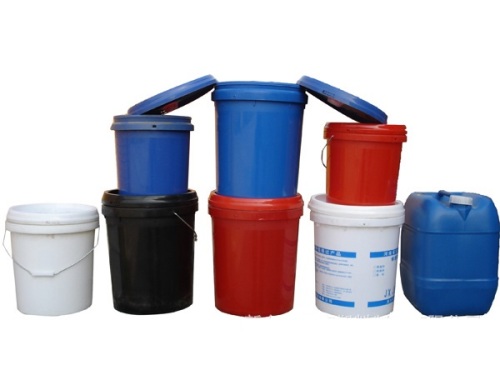

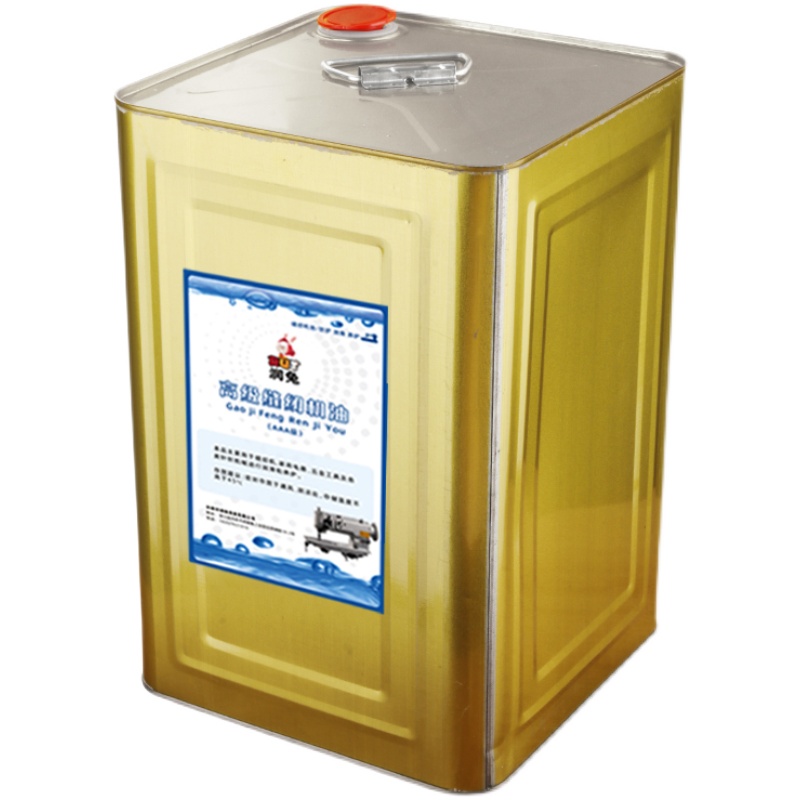

It is reliable, stable, and widely used for 5-30L liquid filling into Large containers like Jerry cans, Tin can, Drum, Bucket, Pail, Tub, etc. Applicable products like cooking oil, lubricant, paints, coating, chemical liquid, etc.
